Hengshui Aohong Technology Co.,Ltd.
$401-9 Others
$3910-49 Others
$38≥50Others
| Rodzaj płatności: | L/C,T/T,D/P,D/A |
| transport: | Ocean,Land,Air,Express |
Cień:
Place Of Origin: Hebei, China
Brand Name: AOHONG
Model Number: AH-220302602

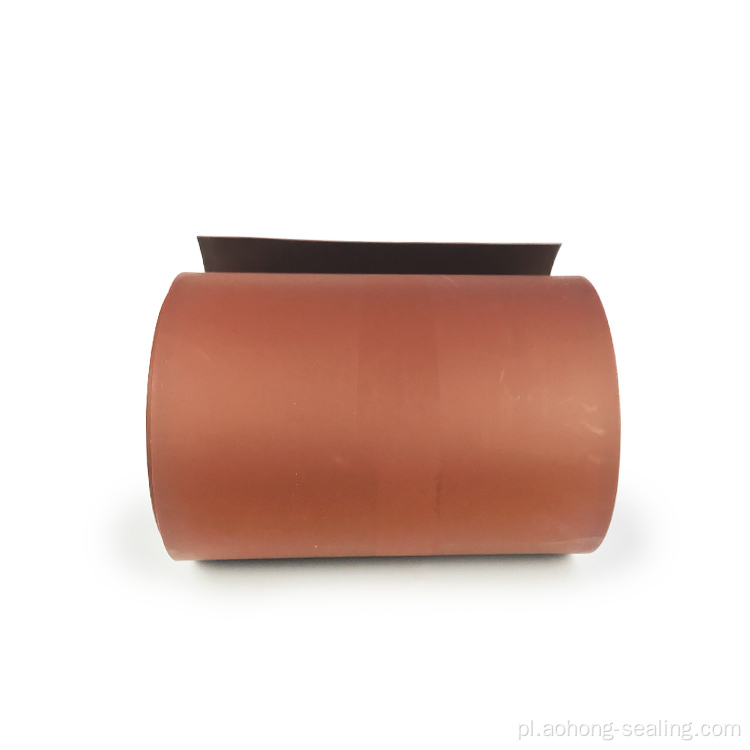

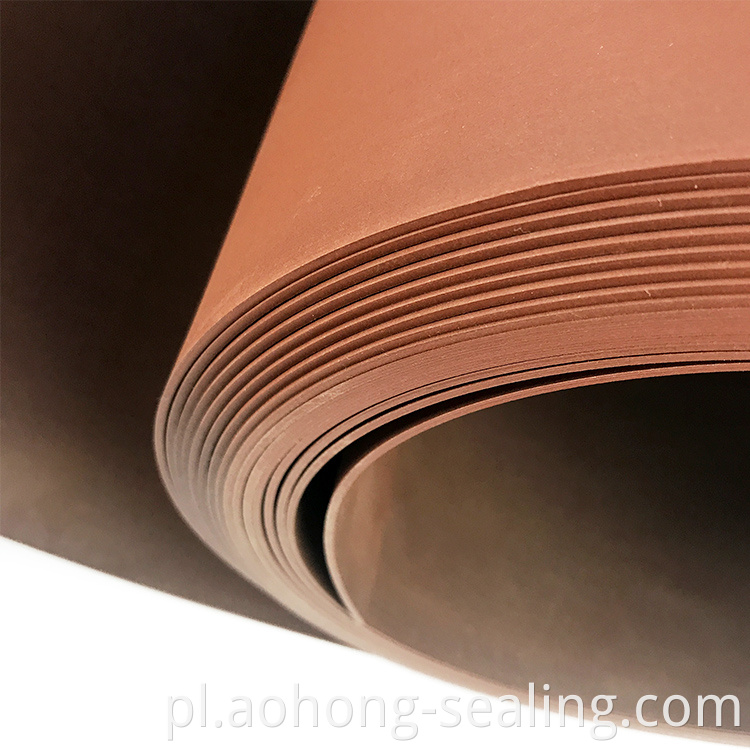

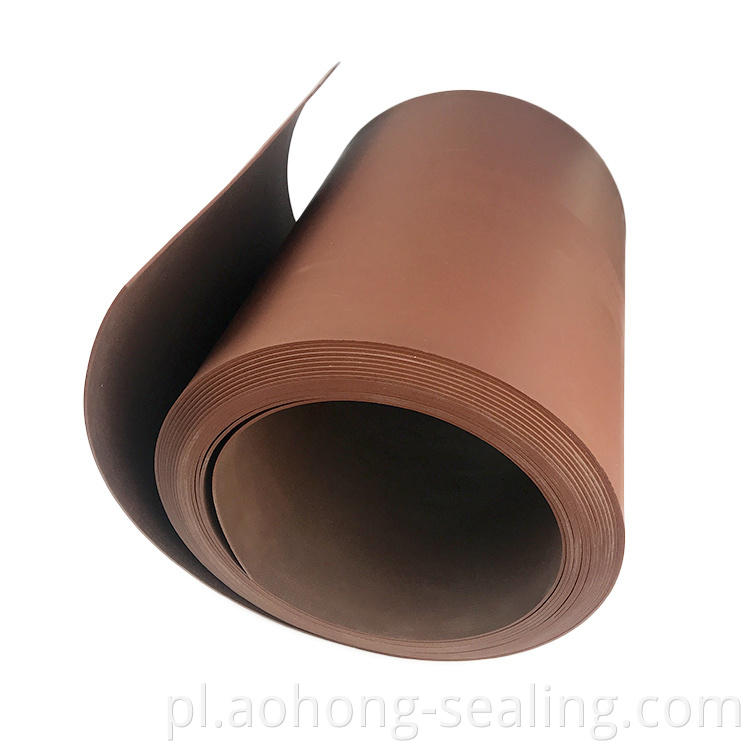

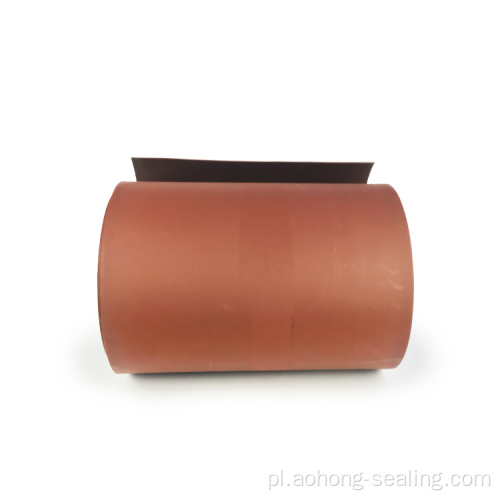

Name Product: Turcite Slideway
Color: green, red and blue
Grubość: 3.2mm
Keyword: turcite
Width: 305mm
Stosowanie: CNC Machine
Density: 3.2-3.4g/cm3
Uszczelka: Roll
Material: 100% PTFE
MOQ: 1kg
| Jednostki sprzedaży | : | kilogram |
| Typ pakietu | : | w rolce lub pakiet paletą |
| Przykład obrazu | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
|
Material
|
PTFE+bronze
|
|
|
||
|
Colour
|
Blue
|
Red
|
Green
|
||
|
Density (g/cm3)
|
3.4
|
3.3
|
3.2
|
||
|
Coefficient of linear expansion (40-120°C)
|
7.7
|
7.62
|
7.5
|
||
|
Tensile strength (Mpa)
|
17
|
16
|
14
|
||
|
Elongation (%)
|
180
|
170
|
150
|
||
|
Compressive strength (Mpa)
|
33--42
|
30--40
|
28---38
|
||
|
Bending strength (Mpa)
|
25-30
|
25-30
|
23--29
|
||
|
Non-notched impact strength (KJ/m2)
|
>16
|
>15
|
>14
|
||
|
Wear(PV=0.7N/mm2.m/s)
|
0.010-0.020
|
0.010-0.020
|
0.010-0.020
|
||
|
Friction loss performance
Gauge Glass, Glass Tube, Level Gauge, Quartz Glass, Sight Glass
(dry friction) Friction coefficient (μ)
|
0.13--0.20
|
0.15-0.21
|
0.16-0.23
|
||
|
Turcite B® 12" Wide
|
|
|
Turcite B® 24" Wide
|
|
|
||||
|
Fraction
|
Decimal
|
Metric
|
Fraction
|
Decimal
|
Metric
|
||||
|
1/64"
|
(0.016")
|
(.406mm)
|
1/64"
|
(0.016")
|
(.406mm)
|
||||
|
1/32"
|
(0.032")
|
(.813mm)
|
1/32"
|
(0.032")
|
(.813mm)
|
||||
|
3/64"
|
(0.047")
|
(1.193mm)
|
3/64"
|
(0.047")
|
(1.193mm)
|
||||
|
1/16"
|
(0.063")
|
(1.6mm)
|
1/16"
|
(0.063")
|
(1.6mm)
|
||||
|
3/32"
|
(0.094")
|
(2.38mm)
|
3/32"
|
(0.094")
|
(2.38mm)
|
||||
|
1/8"
|
(0.125")
|
(3.175mm)
|
1/8"
|
(0.125")
|
(3.175mm)
|
||||
|
3/16"
|
(0.187")
|
(4.750mm)
|
3/16"
|
(0.187")
|
(4.750mm)
|
||||
|
1/4"
|
(0.250")
|
(6.350mm)
|
1/4"
|
NA
|
12" size only
|
||||
|
Property Characteristics
|
|
|
|
1
|
High Wearing Resistance: normally ten times of cast iron guide,good accuracy
|
|
|
2
|
Low Friction: friction coefficient<0.04,only 1/3 of cast iron guide,reducing the driving-energy consumption
|
|
|
3
|
No Creeping: moving steadily
|
|
|
4
|
Good Shock-absorbing Ability: improving processing accuracy
|
|
|
5
|
Good Lubrication
|
|
